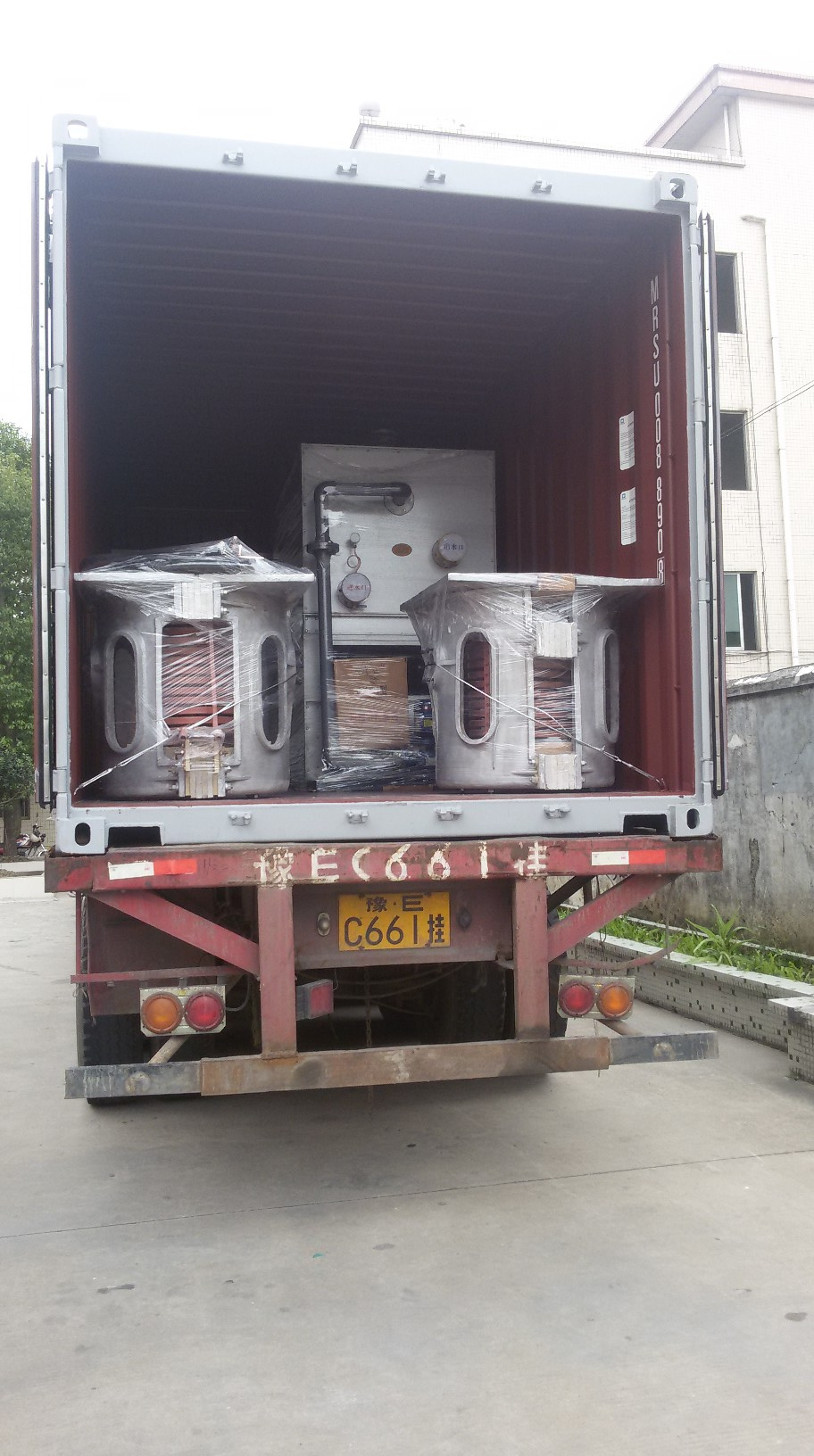

Introduction and application
This is the device converting three phase power current into single phase intermediate frequency current and enabling metal to produce eddy current loss through electromagnetic field induction to achieve heating and melting and is applicable to melting, heating or holding of steel, copper, aluminum, zinc, tin, nickel silver and other ferrous or nonferrous metal and alloy material, as well as heating treatment prior to forging, sintering and tube-bending forming in casting and melting industries.
Performance and features
1. Zero-voltage scanning soft start, start or stop at any time under any state without impact on power supply;
2. Speedy melting, low production cost, low pollution, conforming to environmental protection requirement;
3. Melting directly from low temperature, available for fully emptying of solution, easy change of category of
melting material;
4. Flexibly adjustable power, easy and continuous smooth adjustment, easily controllable temperature, low oxidization loss, uniform
metal content;
5. Furnace shell with cast aluminum ally or steel shell construction, small footprint, easy overturn body, available for selection of electric,
manual, hydraulic or other overturn mode as needed;
6. Contravariant automatic regulation circuit available for matching of load impendence automatically, maintaining good operation without
regulation or compensation of capacitance; power supply with fault diagnosis facilitating service.
===Main Models And Technical Parameters===
Equipment Type
(Furnace capacity) |
Power input
(three-phase four-wire 50/60HZ) |
Power Output |
Melting time
(Minutes) |
Electricity consumption per ton of material (KW) |
Equipment power |
Incoming line voltage |
Into the line current |
Matching transformer |
DC current |
DC voltage |
IF voltage |
IF frequency |
Steel |
Iron |
Copper |
Brass |
Aluminum |
GW--0.05T |
50 KW |
380 V |
80 A |
60 KVA |
100 A |
500 V |
750 V |
1-2.5KHZ |
20-60 |
850 |
800 |
450 |
420 |
470 |
GW--0.1T |
100 KW |
380 V |
160 A |
120 KVA |
200 A |
500 V |
750 V |
1-2.5KHZ |
20-60 |
800 |
750 |
450 |
400 |
460 |
GW--0.2T |
160 KW |
380 V |
256 A |
150 KVA |
320 A |
500 V |
750 V |
1-2.5KHZ |
30-70 |
750 |
700 |
440 |
390 |
450 |
GW--0.25T |
160 KW |
380 V |
256 A |
150 KVA |
320 A |
500 V |
750 V |
1-2.5KHZ |
30-70 |
750 |
700 |
440 |
380 |
440 |
GW--0.3T |
200 KW |
380 V |
320 A |
200 KVA |
400 A |
500 V |
750 V |
1-2.5KHZ |
30-70 |
700 |
650 |
430 |
380 |
430 |
GW--0.45T |
350 KW |
380 V |
560 A |
400 KVA |
560 A |
500 V |
750 V |
0.8 -1.2 KHZ |
30-70 |
650 |
600 |
430 |
370 |
420 |
GW--0.75T |
500 KW |
380 V |
640 A |
600KVA |
800 A |
500 V |
750 V |
1-2.5KHZ |
40-70 |
630 |
580 |
400 |
350 |
420 |
GW--1T |
600 KW |
380 V |
960 A |
630 KVA |
1200A |
500 V |
750 V |
0.7-1KHZ |
40-80 |
600 |
560 |
390 |
340 |
400 |
GW--1.5T |
1000KW |
380 V
660 V |
1600 A
912A |
1250 KVA
1500 KVA |
2000A
1140A |
500 V
880 V |
750 V
1300 V |
0.7-1KHZ |
50-90 |
580 |
530 |
380 |
330 |
370 |
GW--2T |
1250KW |
380 V
660 V |
2000 A
1140 A |
1500 KVA
1800 KVA |
2500A
1430A |
500 V
880 V |
750 V
1300 V |
0.5-1KHZ |
50-90 |
560 |
520 |
370 |
320 |
360 |
GW--3 T |
1500KW |
380 V
660 V |
2400 A
1370 A |
1800 KVA
2000 KVA |
3000A
1710A |
500 V
880 V |
750 V
1300 V |
0.5-1KHZ |
50-90 |
530 |
510 |
350 |
310 |
350 |
GW--5T |
2500KW |
380 V
660 V |
4000 A
2272 A |
3150 KVA
3500 KVA |
3200A
2840A |
780 V
880 V |
1170 V
1300 V |
0.3-1KHZ |
60-120 |
510 |
490 |
340 |
290 |
330 |
GW--10T |
5000KW |
660V |
4560A |
7500 KVA |
5700A |
880 V |
1300 V |
0.3-1KHZ |
80-150 |
500 |
450 |
320 |
260 |
320 |
Furnace temperature: Steel 1650ºC Iron 1450ºC Copper 1150ºC Brass 1000ºC Aluminum 700ºC Zinc 400ºC |
Melting time and power consumption/ton is important to equipment power, raw material shape and weight, operator's skill level and
other elements;
Power parameters shall be subject to steel melting; lower power is required by melting of copper, aluminum, zinc or other material with
low melting point; please consult Hengyang Technical Department for specific data;
Configuration: an intermediate frequency power supply, a capacitor cabinet, an overturn control cabinet, body, two sets of reduction
boxes and supports, two water cooling cables, etc.;
The above data is of standard model. We also provide customized non-standard products with different power or melting speed.
