20t Automatic Hot Chamber Injection Machine
| Price: |
Negotiable/Set |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Set |
| Pay Type: |
T/T,Western Union |
Tonnage: 20T
Die locking force: 200KN
Tie-bars dia.: 40MM
Die stroke: 130MM
Tie bars space: 232*278MM
Mold thickness: 150-220MM
Max. Injection force: 21KN
Ejection force: 13KN
Flow rate of oil pump: 31L/min
Working oil pressure: 6-7Mpa
Output of pump motor: 5.5/6Kw/P
Melting pot capacity(Zn. ): 120KG
Accumulator capacity: 10L
Oil tank capacity: 200L
Input of furnace heating: 9KW
Machine weight: 2.0T
Machine size: 3000*980*1700MM

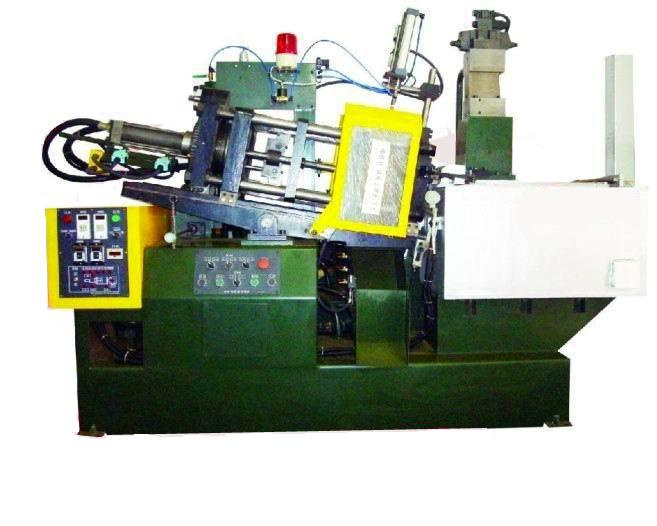

KYLT 20T Zinc injection machine, also named, 20T zinc(Zn. ) hot chamber casting machine, zinc metal injection machine, or metal casting machine, zipper casting /injection machine.
Other we have 12T, 20T, 22T(PLC), 30T hot chamber die casting machines for our client to choose. Those machines can be used to cast, zinc(Zn. Or Zamark), lead(Pb. ), Tin alloy etc low melting point materials.
Main used to cast: Zinc auto parts, zinc zipper head and puller, zinc spoon, coin, lable, logo, jewelry, battery lead(Pb. ) bushing and terminal etc.
| Prod Model: |
20T |
| Markets: |
South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
KYLT Industrial Limited Company focus on providing Die Casting Solutions of Aluminum, Zinc(Zamak), Lead(PB), Copper(Brass), Magnesium metal alloy for Middle-Small enterprises.
As experienced die casting solutions supplier and manufacturer, KYLT provide products and services involve: Cold /Hot Chamber Die Casting Machines (zinc alloy injection machines & lead alloy injection machines), Molds making, precision Aluminum / Zamak metal alloy die casting, Plastic injection, Surface treatment, Assembly etc.
1. PLC Horizontal Cold Chamber Die Casting Machines:
--Tonnage: 150T, 160T, 180T, 220T, 280T, 300T, 350T, 400T, 550T, 700T, 850T, 1100T, 1300T, 1600T, 2000T
--Useage: Aluminum, Copper/brass, Magnesium, Zinc(Zamak), Lead(PB. ) alloy die casting parts of Automotive, Motorcycle, Lamps and lanterns, Pneumatic components, diesel engine, Furniture, Telecommunication etc military industrial and domestic lines.
--Operation method: By PLC. Manual, Semi-Automatic, Full-automatic with ancillary equipments(Automatic Ladling, Spraying Machine, Extractor etc)
--Service: Provide die casting plant diagram, and technical support before and after sales services.
Full automatic PLC Hot Chamber Die Casting Machines:
--Tonnage: 12T, 12T plus, 15T, 18T, 20T, 22T(Horizontal, Vertical types)
--Useage: Zinc(Zamak), Lead(PB. ) alloy parts of Automotive, Motorcycle, Hand t& pneumatic tool, Metal Zippers, Lead Acid Battery Bushings and Terminals, Metal Jewelry / Button / Arts & crafts, Brake cable zamak ends, Battery bolt terminals, PB alloy fishing sinkers etc.
--Operation method: By PLC. Manual, Semi-Automatic, Full-automatic
--Service: Making molds as per clients drawings, Machine test with customer moulds is allowed. KYLT will send test samples to end user by TNT, DHL, UPS ect. And provide testing videos and photos. After sale, any operation questions will be replied with 24hours.
Die Casting and Injection Parts:
--Cold and Hot Chamber Die Casting Machines: 30T - 500T
--Plastic Injection Molding: Horizontal and Vertical injection machines
--Materials: Aluminum, Zinc/Zamak; ABS, PP etc plastics
--Machining: CNC, Drilling, Lathing, Tapping, Milling etc
--All die casting and injection moulds are finished in house, maintain and repair easily to guarantee production in time.
4. Surface treatment:
--Shacking Polish, Shot blasting, Manual polishing(Normal & Bright surface), Painting, Powder Coating, Plating, Pad printing, Silk printing etc.
5. Assembly:
--As per customers demand, KYLT can ready die casting parts, plastic injection molding parts, stamping punch parts, welding parts, electric elements etc by ourselves, and assembling them in house. Provide A Finished Project for clients.
6. Packing:
--As per clients requirements
--Good quality Cartons and Pallets
7. Transportation:
--FOB, CFR, CIF, EXWORKS trade methods are allowed
--Samples and spare parts can be send by UPS, TNT, FedEx, EMS, DHL etc.
--Factory near Shanghai and Ningbo Ports, Air and Sea shipments are conveniently.
KYLT as "ONE-STOP" service supplier, with good quality & excellent service, ourcold / hot chamber die casting machines and precision metal alloy partsare export to Brazil, India, Peru, Ecuador, Yemen, Spain, Germany, UK, USA etc countries and regions.
KYLT looking forward to cooperate with you!
