Hydraulic press brake, 2 Axis NC Hydraulic Press brake1. Machine CharacteristicsThe machine is equipped with hydraulic electric control, freely adjustable slider travels and inching, semi-automatic, automatic operating criterion convenient for module trial and adjustment.
Up-move type bending design, pair oil cylinders working simultaneously, balanced operation, convenient, and safety.
With function of keeping pressure and delay time on lower dead spot, to assure the accuracy of work pieces.
2. Product Superiority
BOHAI hydraulic press brakes are a high quality, heavy duty torsion balanced machine.
BOHAI hydraulic press brakes are manufactured to the highest standards.
Machines come standard with a 2 axis digital readout system.
Welded steel structure, vibratory stress relief, high mechanical strength and good rigidity
Hydraulic transmission provides steady and reliable operation.
3. Product Features
All steel welded construction
A synchronized torsion bar system ensures consistent ram movement.
Front sheet support arms
Standard top & bottom tools

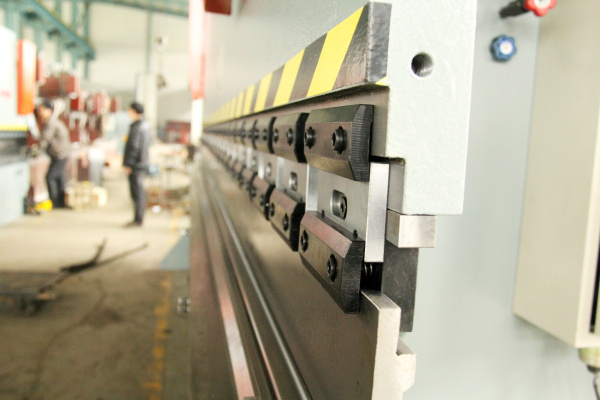

Taper wedge tool clamps
Hand moveable foot pedal control (with emergency stop)
Side safety guards
Rear safety guards (interlock switches)
Overload protection device
Adjustable cams to set the upper position & work speed change point (adjustable travel limit control)
CNC Control Panel (2 axis)
4. Options
Optional Delem CNC control (3 axis + )
Electro-hydraulic Synchronization: ---- 3+ axis
Ram Stroke: Y1, Y2
Back Gauge: X; X-R; X-R-Z1-Z2; X1-X2-Z1-Z2-R; X1-X2-R1-R2-Z1-Z2
Quick release tool clamps
Light guard system or laser safe guarding
Hydraulic crowning system

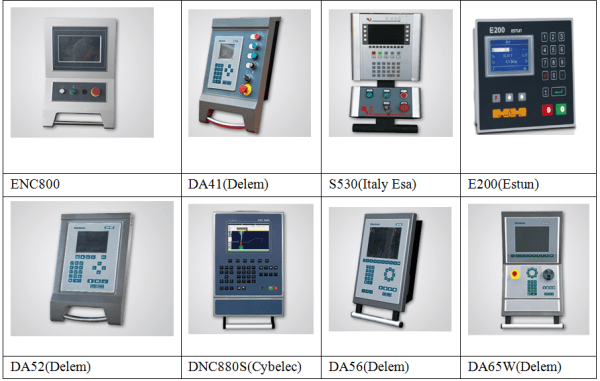

5. CNC Controller
| 5. WD67Y Hydraulic Press Brake Technical Data |
Model | Normal
force | Worktable
length | Distance Between Housing | Throat Depth | Ram
Stroke | Max.Open
Height | Motor | Dimension |
| Power | (L x W X H) |
| KN | MM | MM | MM | MM | MM | Kw | MM |
| 30T/1600 | 300 | 1600 | 1300 | 220 | 80 | 220 | 3 | 1600*940*1700 |
| 35T/2050 | 350 | 2050 | 1600 | 220 | 100 | 250 | 4 | 2050*1050*1850 |
| 40T/2200 | 400 | 2200 | 1850 | 200 | 100 | 340 | 5.5 | 2260*1250*2060 |
| 40T/2500 | 400 | 2500 | 2000 | 200 | 100 | 340 | 5.5 | 2560*1250*2060 |
| 63T/2500 | 630 | 2500 | 2000 | 250 | 125 | 370 | 5.5 | 2560*1280*2260 |
| 63T/3200 | 630 | 3200 | 2560 | 250 | 125 | 370 | 5.5 | 3260*1280*2420 |
| 80T/2500 | 800 | 2500 | 2000 | 320 | 140 | 390 | 7.5 | 2560*1500*2400 |
| 80T/3200 | 800 | 3200 | 2560 | 320 | 140 | 390 | 7.5 | 3260*1500*2400 |
| 80T/4000 | 800 | 4000 | 2960 | 320 | 140 | 390 | 7.5 | 4060*1500*2400 |
| 100T/2500 | 1000 | 2500 | 2000 | 320 | 140 | 390 | 7.5 | 2560*150*2450 |
| 100T/3200 | 1000 | 3200 | 2560 | 320 | 140 | 390 | 7.5 | 3260*1500*2450 |
| 100T/4000 | 1000 | 4000 | 2960 | 320 | 140 | 390 | 7.5 | 4060*1500*2450 |
| 125T/3200 | 1250 | 3200 | 2560 | 320 | 125 | 380 | 7.5 | 3200*1500*2450 |
| 125T/4000 | 1250 | 4000 | 2960 | 320 | 125 | 380 | 7.5 | 4000*1500*2450 |
| 160T/3200 | 1600 | 3200 | 2550 | 320 | 200 | 450 | 11 | 3260*1500*2480 |
| 160T/4000 | 1600 | 4000 | 2950 | 320 | 200 | 450 | 11 | 4080*1500*2480 |
| 160T/5000 | 1600 | 5000 | 3950 | 320 | 200 | 450 | 11 | 5060*1500*2480 |
| 200T/3200 | 2000 | 3200 | 2540 | 320 | 200 | 450 | 15 | 3200*1500*2480 |
| 200T/4000 | 2000 | 4000 | 2940 | 320 | 200 | 450 | 15 | 4000*1500*2480 |
| 200T/5000 | 2000 | 5000 | 3940 | 320 | 200 | 450 | 15 | 5000*1500*2480 |
| 250T/4000 | 2500 | 4000 | 2920 | 400 | 250 | 530 | 18.5 | 4240*1600*3000 |
| 250T/5000 | 2500 | 5000 | 3920 | 400 | 250 | 530 | 18.5 | 5240*1600*3000 |
| 300T/4000 | 3000 | 4000 | 2920 | 400 | 250 | 530 | 18.5 | 4060*1600*3000 |
| 300T/5000 | 3000 | 5000 | 3920 | 400 | 250 | 530 | 18.5 | 5000*1600*3000 |
| 300T/6000 | 3000 | 6000 | 4920 | 400 | 250 | 530 | 18.5 | 6000*1600*3000 |
| 400T/4000 | 4000 | 4000 | 2920 | 400 | 300 | 560 | 22 | 4000*2180*3800 |
| 400T/5000 | 4000 | 5000 | 3920 | 400 | 300 | 560 | 22 | 5000*2180*3800 |
| 400T/6000 | 4000 | 6000 | 4700 | 400 | 320 | 630 | 30 | 6060*2220*3980 |
| 500T/6000 | 5000 | 6000 | 4600 | 500 | 320 | 700 | 30 | 6080*2760*4000 |
| 800T/6000 | 8000 | 6000 | 4600 | 500 | 400 | 900 | 37 | 6100*3250*4300 |
| Note: All above mentioned data are subject to Change without notification |
