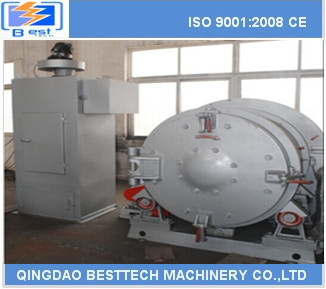

Product Description
1.This type shot blasting machine is suitable for surface rust removal of work pieces in medium or small quantity batch production with many varieties. Put the work pieces into the barrel and blasting it in side way.
2.The high-speed impeller of airless shot blasting machine throws the abrasive to the continuous tumbling castings or forgings in barrel, to remove the greensand or scales on the surface.
3. It cleans evenly and its productivity is high, so it is suitable for cleaning the small work pieces whose weight are under 15g in medium or small-scale casting or forging workshops.
Technical parameter
Item |
unit |
Q3110BI |
Q3110BII |
Q3113BI |
Q3113BII |
Drum diameter |
mm |
1000 |
1000 |
1300 |
1300 |
Loading capacity |
kg |
300 |
300 |
600 |
600 |
Productivity |
kg/h |
600-1500 |
600-1500 |
2500-3500 |
2500-3500 |
Power |
kw |
10 |
10 |
14.5 |
16 |
Maximum weight of single workpiece |
kg |
15 |
15 |
30 |
30 |
Rotational speed of rolling drum |
r/min |
3 |
3 |
2.5 |
2.5 |
Abrasive flow rate |
kg/min |
120 |
120 |
160 |
160 |
Ventilation capacity |
m3/h |
800 |
2000 |
2000 |
2800 |
Dedusting efficiency |
% |
85 |
99 |
85 |
99 |
Outline dimensions |
mm |
2078*2458*1861 |
3870*2458*2250 |
2550*2341*2250 |
4362*2341*2250 |
