Our Certifications and Features are:
1. Got the American "AAR" Certification;
2. Got the Russian Certification;
3. Got the Ukrainen Certification;
4. Using the German "V" modeling technology;
Side frame - one of the main structural elements of the bogie framework of the model 18-100. It is manufactured by casting, with additional machining and riveting of wear-resistant plates. Side frame, drawing No. 100.00.002-4SB, represents a major piece of a freight wagon bogie, which transmits the load on the axle through the axle box. Cast alloy steels 20GFL and 20GL.

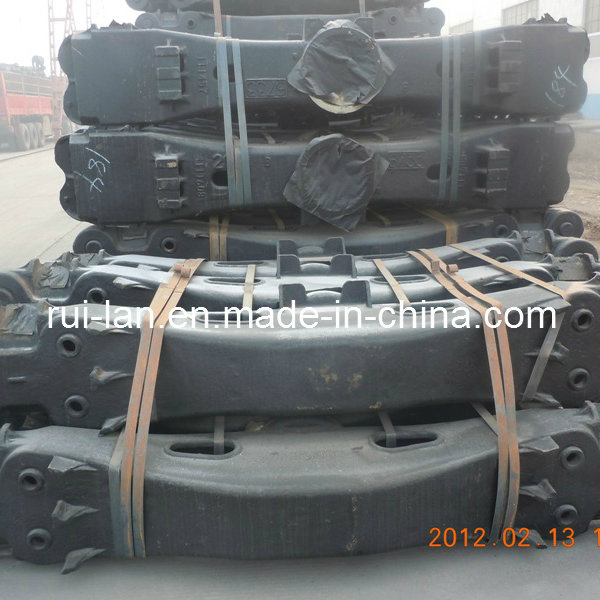

Bolster drawing No. 100.00.001-6 serves as a bridge between the two side frames in the construction of a freight wagon bogie. To ensure reliability and durability the bolster is casted from steel 20GFL or 20GL. One of the main frame details of a bogies framework model No. 18-100. Set lifetime of a bogie frame before a bolster discarding is 30 years. The designated lifetime up to the first depot repair is 2 years, before the first overhaul is 8 years. Established time to failure is at least 2 years.
Overall dimension:
Side frame: 2.41m*680cm*56cm weight: 400kg
Bolster: 2.61m*39.5cm*47cm weight: 525kg
All dimensions could be customized accordingly to details or drawing paper.
| Descriptions | Casting part/Sand casting/investment casting |
| Material grade | Carbon steel,alloy steel, gray iron, ductile iron |
| Standard approved | GB,ASTM,DIN,JIS etc. |
| Weight range | especially good at castings between 50kg and 7tons. |
| Producing capacity | 1000 tons per month |
| Main application | Railway parts,agricultural machinery parts,
machining parts, and construction industry |
| Main equipments | Heat treatment furnaces; direct-reading spectrometer
shot -blasting equipments, sand-blasting machine |
| Surface treatment | Shot blasting,heat treatment ,polishing,plating,etc |
| Inspection and test | UT, MT, RT, Foundry in home, third part inspection |
| Packing and shipping | Standard export package
delivery time as your quantity. |
| Casting service | Number can be casted on the surface clearly
trade name
|
Qingdao RuiLan Trading Co., Ltd is specialized in Railway bogie casting parts, like bogie18-100 to Russia, bogie1750 to Ukraine, both bogie18-100 and bogie1750 with certificate can make sure products enter into your market.
Bogie18-578, bogie18-194 and bogie 18-7020 will be ok soon.
We have been cooperated with many big companies and manufactures in Russia and Ukraine. Our experienced engineers offer a wealth of design and application expertise. We can offer you more than 20 years of experience in designing and manufacturing to satisfy your particular needs. Our company has advanced equipment, professional staff. Our raily way parts productions obtained CRCC certification, AAR, Ukrsepro and ISO9001: 2000 quality system certification, which guarantees high quality railway products for domestic and foreign manufactures.
Our International trade department is responsible for the product export, and undertakes the train design, manufacture, maintenance, and production of major cast steel parts and bogie parts.
"Quality Products, Excellent Service, Competitive Prices and Prompt Delivery" is our principle. We have built up good relationships with customers all over the world. We are advancing into global market drastically. Additionally, we have put considerable efforts on development and design, which can enable us to better satisfy customers' changing needs in a positive manner.
We are pleased to be your stable railway parts, components any products such as casting parts, bogies we can make them according to your drawings.
We sincerely welcome you to visit our company for cooperation and mutual development.
