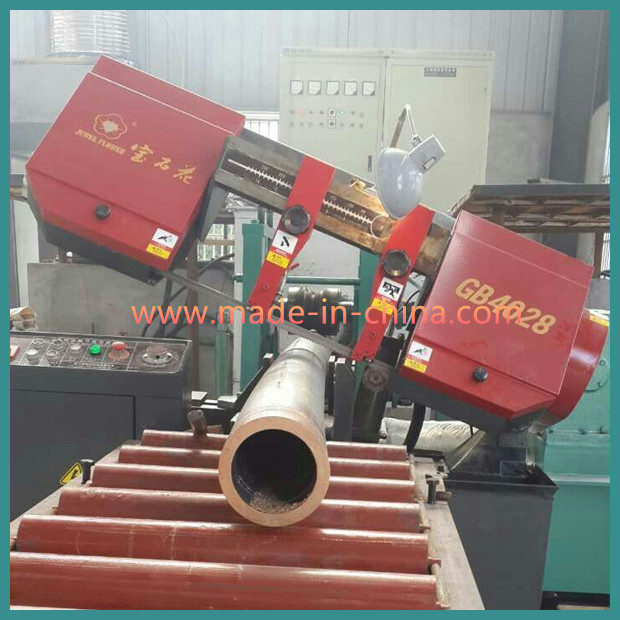

110mm Brass Pipe Continuous Casting Machine
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Paypal,Money Gram |
Horizontal continuous casting machine
Product Description:
The horizontal continuous casting machine is mainly used for brass bar,brass tube making.The materials can be pure brass ,scrap brass and other brass materials.
Main composed parts :
1.Induction furnace
2. Traction machine
3. Automatic cutting machine
4. peeling machine(barking machine)
5. Electric control system
6.Water cooling system
7. Dust removal equipment.
Technical Parameters:
Model | GYT-0.15T | GYT-0.30T | GYT-0.50T | GYT-0.75T | GYT-1.0T | GYT-1.5T | GYT-3.0T |
| Rated capacity (T) | 0.5 | 0.8 | 1.5 | 1.8 | 2 | 2.5 | 5 |
| Rated power (KW) | 45 | 75 | 120 | 185 | 240 | 400 | 600 |
| Rated voltage (V) | 380 | 380 | 380 | 380 | 380 | 380 | 380 |
| Rated frequency (Hz) | 50 | 50 | 50 | 50 | 50 | 50 | 50 |
| Phase no. | 3 | 3 | 3 | 3 | 3 | 3 | 3 |
| Rated temperature (oC) | 1200 | 1200 | 1200 | 1200 | 1200 | 1200 | 1200 |
| Melting rate (T/h) | 0.15 | 0.3 | 0.5 | 0.75 | 1 | 1.5 | 3 |
| Electricity consumption (KW·h/t) | 320 | 310 | 300 | 290 | 290 | 280 | 280 |
| Transformer capacity (KVA) | 80 | 100 | 150 | 200 | 250 | 500 | 800
|
Packaging:Nude and plywood cases
| Prod Model: |
HCCM |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Application: |
Casting |
| Layout Type: |
Horizontal |
| Production Type: |
Continuous |
| Raw Materials: |
Copper,Bronze,Brass |
| Size: |
10mm~200mm |
| Rated Capacity: |
500kg~5t/Hour |
| Frequency: |
50Hz or 60Hz |
| Phase: |
3-Phase |
| Voltage: |
220V,380V,400V,415V,440V |
| Casting Form Material: |
Metal |
| Casting Method: |
Continuous Casting |
| Casting Metal: |
Brass,Copper ,Bronze |
