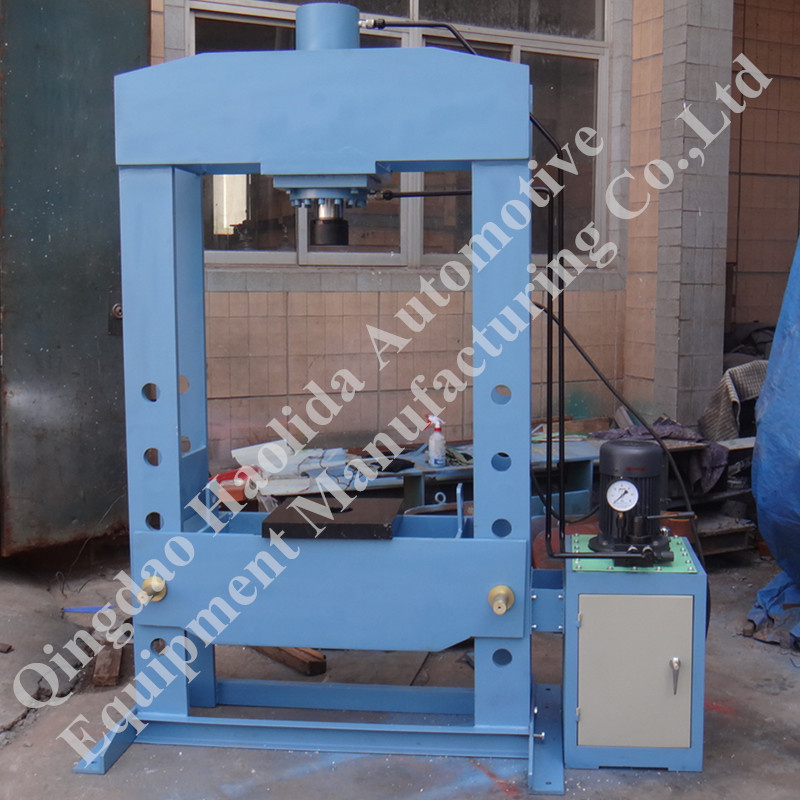

100T Electric Hydraulic Press
General introduction:
1.adopts door type steel structure and one piston and double oil cylinders
2.High-low pressure pump with parallel connection
3.Manual direction changing to control stroke of piston rod
4.hydraulic pressure drive workbench to lift
5.Fit for dismantling, installing, straightening, drawing and moulding for machinery industry
6.Fit for cold riveting and moulding of pot-angle tooth
7.It is safe and easy to operate
Technical parameter:
| Model no | DYYL |
| Material | U-steel |
| Painting | High quality paint |
| Color | Blue |
| Voltage | 220V 50 Hz (other voltage acceptable) |
| Motor power | 1.5KW |
| Max working press | 1000KN(100T) |
| Max working height | 1000mm |
| Max working width | 800mm |
| Stroke | 350mm |
| Oil cylinder pressure | 45Mpa |
| Motor power | 2.2kw |
| Total height of the press | 1950mm |
| Total width of the press | 1570mm |
| Accessories: |
| Working plate,support tools, etc. |
| Others you may want to know: |
| MOQ | 1set |
| Warranty period | 12 months |
| Payment term | T/T 50% in advance, the balance should be paid before delivery (negotiable) |
| Delivery time | 20 days after receiving downpayment |
| HS code | 84639000.90 |
| Packing sizes | 2370*1300*530mm=1.63CBM
645*460*1120mm=0.33CBM |
