Product Description

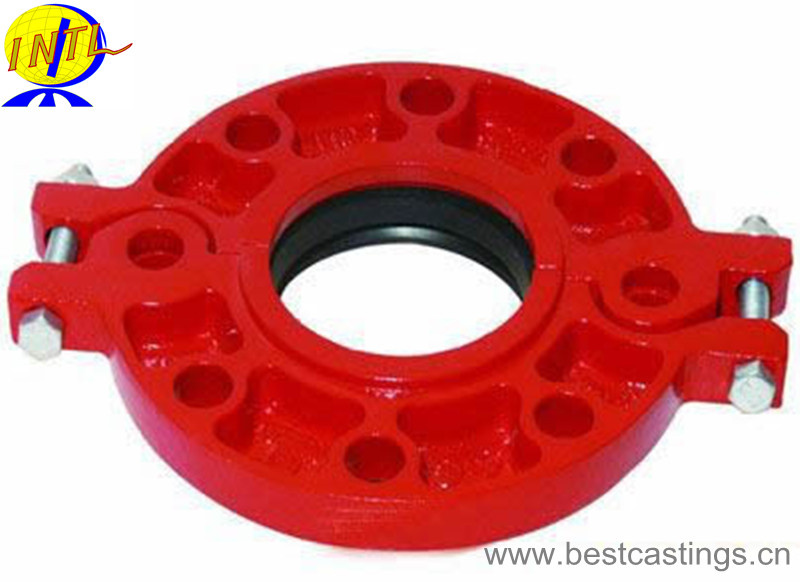

Product name : ductile iron grooved split flange
Specifications
1.size
| 1.6Mpa Grooved Split Flange |
| Nominal Size mm/in | Pipe O.D mm/in | Working Pressure PSI/MPa | Dimensions mm/in |
| A mm/in | B mm/in | C mm/in | D mm/in |
50
2 | 60.3 2.375 | 230
1.6 | 222
8.740 | 23
0.906 | 165
6.496 | 125 4.921 |
65
2½ | 73
2.874 | 230
1.6 | 234
9.212 | 23
0.906 | 185
7.283 | 145
5.708 |
65
3OD | 76.1
3.000 | 230
1.6 | 234
9.212 | 23
0.906 | 185
7.283 | 145
5.708 |
80
3 | 88.9
3.500 | 230
1.6 | 252
9.921 | 23
0.906 | 200
7.874 | 160
6.299 |
100
4 | 114.3
4.500 | 230
1.6 | 278
10.945 | 24
0.944 | 220
8.661 | 180
7.086 |
150
6 | 168.3
6.625 | 230
1.6 | 346
13.622 | 24.5
0.965 | 285
11.22 | 240
9.448 |
200
8 | 219.1
8.625 | 230
1.6 | 414
16.299 | 30
1.181 | 340
13.38 | 295
11.614 |
2. Surface treatment : epoxy,painted ,galvanized
color : red , orange , blue or as your request
3. Cetificate: FM UL ISO
4. Flange series inculde: Flange adapter, threaded flange, and grooved split flange.
5. OEM is acceptable, or according to customers' special requirements.
6.Usage:
1)Automatic sprinkler system for fire protection on commercial, civil and municipal constructions like
water supplying, gas supplying, heat supplying, etc
2)Industrial pipeline system on shipping, mine, oil field, textile, powder plant, etc.
3)Pipeline system on subway station, railway station, airport, seaport, bridge, etc
Hebei Mingda International Trading Company is a trading company which is specialized in
Castings, forgings and machinery parts.
We have deep business interaction with manufactures in major cities of China, so we are quite
Flexible and confident to be any kind of casting products to be able to meet
Ourcustomers'request on quanlity and delivery time.
Our products include all kinds of raw castings to be made of ductile iron, grey iron, brass,
Stainless steel and aluminums, machined castings and forged parts. To make these parts
According to the customers' drawings, we have relative suitable production craft and
Equipments, such as resin sand, sand mould, hot core boxes, lost-wax, lost -foam and so on.
Specially for hydrant bodies and valves' bodies, we have collected rich experience for these
Products in the past 16 year's actual production, Now we are proud of our products with good
Surface and high quality material. Whatever, we have been trying our best to provide our
Customers with better quality castings by improving production crafts and more careful quality
Control.
Apart from buyers' requirements, we also have our own very strict quality assurance system,
That makes sure the buyer's demand more significant and it could be done exactly according to
Our customres'required Quality Standards. This saves much time and money for both sides.
From founded to now, our products arehighly recognized by our customers, Meantime we win a
Good reputation in the casting and machinery industry whoever from customers or our partners.
Now our products are mainly exporting to Germany, Sweden, UK, Denmark, France, USA,
Middle-East, and so on.
Looking Forward To Receiving Your Kind Favorable Reply At Your Earliest!
