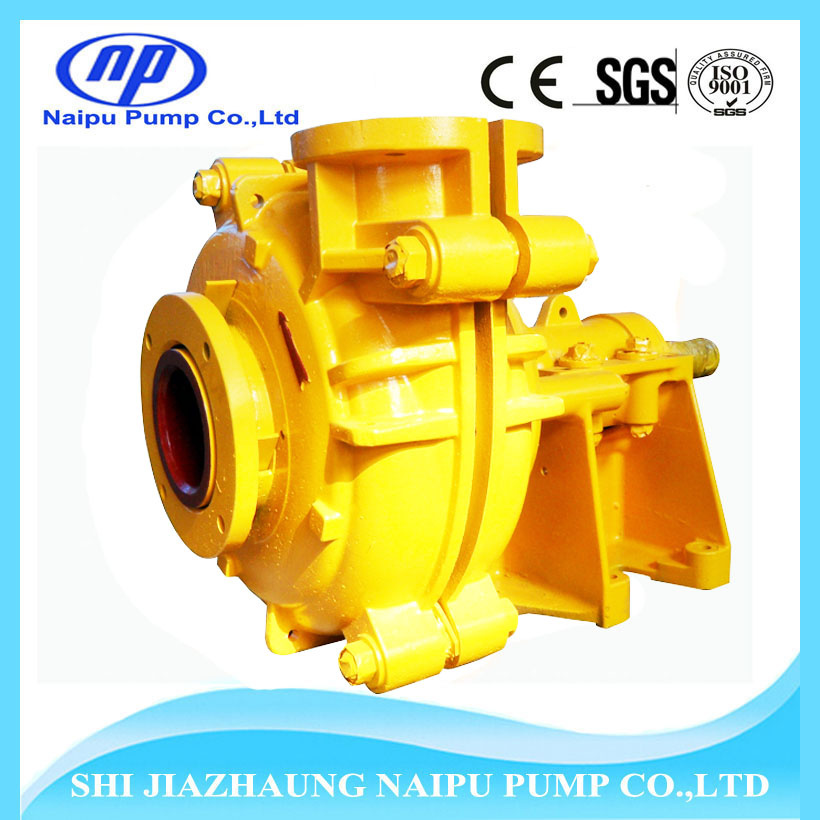

Centrifugal Slurry Pump For Coal Washing Plant
Name: NP-AH(R), M, HH Slurry Pumps
Pump Type: Centrifugal Horizontal, single or multistage Slurry Pump
Drive Type: ZVz/CRz/CV/DC
Power: Motor / Diesel
Discharge Size: 1 to 18 inch
Capacity: 0-1000 (l/s)
Head: 0-70(m)
1) Slurry Pump Feature
1. NP-AH series centrifugal slurry pumps and spare parts can fully interchange with world famous brand.
2. These pumps are of heavy-duty construction, designed for continuous pumping of highly abrasive and corrosive slurries.
3. They feature a wide choice of replaceable abrasion resistant metal or moulded elastomer casting liners and Impellers, which are all interchangeable within a common casting assembly.
2) Typical Applications
Minerals Flotation Processing
Electric Factory Coal Preparation
Coal Washing
Chemical Medium Processing
Effluent Handling
Sand And Gravel Handling
3)Type Notation:
12/10ST-AH
10: Discharge size (inch)
12: Suction size (inch)
ST: Frame type with maximum power
AH: High concentration and high abrasive slurry
4) Performance Paramters
| AH Series Slurry Pump Performance Chart |
|
Pump
Model | Allowable
Max. Power | Clear Water Performance |
|
| Capacity Q | Head
H(m) | Speed
n(r/min) | Max.Eff.
η% | NPSH
(m) | Impeller
Dia. |
| m3/h | l/s |
|
| 1.5/1B-AH | 15 | 12.6-28.8 | 3.5-8 | 6-68 | 1200-3800 | 40 | 2-4 | 152 |
| 2/1.5B-AH | 15 | 32.4-72 | 9-20 | 6-58 | 1200-3200 | 45 | 3.5-8 | 184 |
| 3/2C-AH | 30 | 39.6-86.4 | 11-24 | 12-64 | 1300-2700 | 55 | 4-6 | 214 |
| 4/3C-AH | 30 | 86.4-198 | 24-55 | 9-52 | 1000-2200 | 71 | 4-6 | 245 |
| 4/3D-AH | 60 |
| 6/4D-AH | 60 | 162-360 | 45-100 | 12-56 | 800-1550 | 65 | 5-8 | 365 |
| 6/4E-AH | 120 |
| 8/6E-AH | 120 | 360-828 | 100-230 | 10-61 | 500-1140 | 72 | 2-9 | 510 |
| 8/6R-AH | 300 |
| 10/8ST-AH | 560 | 612-1368 | 170-380 | 11-61 | 400-850 | 71 | 4-10 | 686 |
| 12/10ST-AH | 560 | 936-1980 | 260-550 | 7-68 | 300-800 | 82 | 6 | 762 |
| 14/12ST-AH | 560 | 1260-2772 | 350-770 | 13-63 | 300-600 | 77 | 3-10 | 965 |
| 16/14UT-AH | 1200 | 1368-3060 | 380-850 | 11-63 | 250-550 | 79 | 4-10 | 1067 |
4) Materials of Construction
|
LINERS |
IMPELLERS |
CASING |
BASE |
EXPELLER |
EXPELLER RING |
SHAFT SLEEVE |
SEALS |
Standard |
Chrome Alloy
Natural Rubber |
Chrome Alloy
Natural Rubber |
SG Iron |
SG Iron |
Chrome Alloy
or
SG Iron |
Chrome Alloy
or
SG Iron |
SG Iron |
Rubber
and
Nitrile |
Options |
Ferralium
Hastelloy C
316 SS
W151
Polyurethane
Neoprene
Butyl
Viton
Nitrile
EPDM
Hypalon |
Ferralium
Hastelloy C
316 SS
W151
Polyurethane
Neoprene
Butyl
Nitrile
Hypalon |
SG Iron
Various grades |
MS
Fabricated
Cast Iron |
NI Resist
Ferralium
Hastelloy C
Polyurethane
316 SS
W151 |
NI Resist
Ferralium
Hastelloy C
316 SS
Rubber
W151
Polyurethane
Neoprene
Butyl
Nitrile |
EN56C
Ferralium
Hastelloy C
Titanium
316 SS
304 SS |
Ceramic
Stellite
Chrome Oxide
Nordel
Neoprene
Viton |
Our Pump and spare parts can Totally Replace with AH(R), M(R), HH, L, SP(R), G, AF(R) Series
We also have ZJQ Submersible slurry pump, WQ sewage Pump, ZJG, ZG, ZJW Feeding pump, Series
In addition, we also can accept OEM Order
Shijiazhuang Naipu Pump Co., Ltd is a professional manufacturing enterprise of slurry pumps located in high and new technology development zone. The enterprise has one group of high quality technical and management talent working in Design, R & D, Production, Sales and Services. The technical team consists of talents specialized in hydraulic machinery, casting, heat treatment, engineering, material science and machining.
The company manufactures its products using advanced technique based on well built management and sales & service system. Product quality is guaranteed with various test and inspection facilities...
Naipu is specialized in the manufacture and sales of slurry pump and pump parts, especially the design and manufacture of products made with high abrasive, anti corrosive rubber material, including NP-AH(R). NP-M. NP-HH. NP-SP(R). NP-G series slurry pump, NP-ZG. NP-ZJG series slurry pump, NP-WS series dredging pump and NP-PNJ series slurry pump.
The products are widely used in mining, power, metallurgy, coal, dreading, building material and other Industrial lines to pump concentrate, tailings, sludge and other abrasive, high density slurries.
Meeting customers' technical requirements and with a long lifespan, lower cost and high safety, our products are sold well all over of China and far to southeast Asia, Noth America, South America, Russia and etc.
We are confident that we can offer customers satisfying products and services with our continuous efforts in product research and improvement. We look forward to working with customers domestic and abroad to build a promising future.
We can develop and produce a range of pumps according to different media situation to meet different duty requirment.
There are rubber material (R08, R12, R26, R33, R38, R55, S03, S12, S31, S21, S51, S52 U01 and etc), wear resistant metal material( A05, A07, A33, A49, A61 and etc), Corrosion Resistant stainless steel material (201, 304, 316, 316lL and etc ), fully meet customers' request.
We can undertake various OEM orders for pumps as well as spare parts customized according to drawings or samples.
